UL 6073-2021 Clause 9.4 PV Connector Cyclic Tensile Testing Machine For Durability Testing

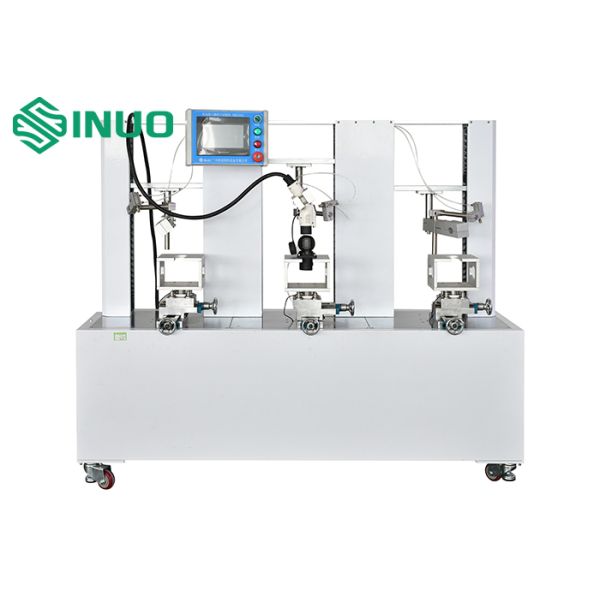

The PV Connector Cyclic Tensile Testing Machine fully complies with UL6073-2021 (Clause 9.4) for Connectors Used in Photovoltaic Systems. It is designed for PV connectors with cables up to 250AWG. Adopting PLC intelligent control and servo motor drive, it performs reciprocating tensile cycles under load current to detect breakage, wire disconnection, and validate mechanical and electrical reliability. It is essential for R&D, quality inspection, and mass production testing of PV connectors.
Specifications
| Standard |
UL6073-2021 Clause 9.4 Cyclic Tensile Test |
| Test Stations |
3 independent stations |
| Sample Range |
PV connectors with cables ≤250AWG |
| Test Force |
10~1000N (customizable) |
| Force Accuracy |
±0.5% |
| Min. Force Display |
0.01N |
| Min. Displacement Display |
0.01mm |
| Test Speed |
0.01~100mm/min |
| Test Frequency |
1-2 cycles/min (3-station adjustable) |
| Drive |
Servo motor |
| Control |
PLC + touch screen (PC control optional) |
| DC Power |
5V 400A programmable DC power supply |
| Judgment |
Peak force detection; current disconnection detection |
| Structure |
Floor-standing, heavy-duty steel base |
| Lifting |
Precision sliding stage |
| Fixture |
PV dedicated fixture (customizable) |
| Protection |
Over-force alarm, earth leakage protection |
| Dimensions |
W×D×H = 1200×600×1620mm |
| Weight |
Approx. 200kg |
| Power |
AC220V±10% / 50-60Hz |
| Environment |
5-35℃, humidity 30%-90% |
Key Features
- 3 independent stations - test 3 samples simultaneously without interference
- High precision measurement - ±0.5% force accuracy, 0.01N resolution
- Fully compliant - meets UL60730-2021 Clause 9.4 for certification testing
- Intelligent automatic control - preset cycles, force, speed; auto-stop
- Dual judgment system - peak force + current disconnection detection
- Full safety protection - over-force alarm, leakage protection
Frequently Asked Questions
Q1: Which standards does this machine support?
A1: It fully complies with UL6073-2021 Clause 9.4 for PV connector cyclic tensile testing.
Q2: How many samples can be tested at the same time?
A2: 3 independent stations allow simultaneous or separate testing.
Q3: What is the force range and accuracy?
A3: Standard range 10 -1000N, accuracy ± 0.5%, resolution 0.01N. Custom ranges available.
Q4: How does the machine judge pass/fail?
A4: Dual detection: peak force change and electrical disconnection signal.
Q5: What power supply is required?
A5: AC220V ±10% / 50-60Hz. Built-in 5V 400A programmable DC source.
Q6: Are fixtures universal?
A6: Standard PV dedicated fixture; other types can be customized.
Q7: Does it support PC control and data export?
A7: Touch screen standard; PC control optional with data storage, export, and print.
